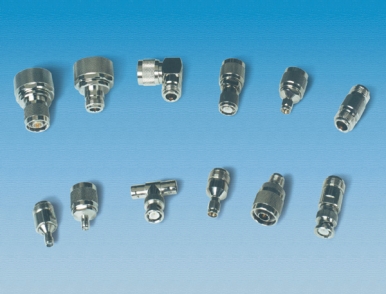

接頭轉(zhuǎn)換器
型號 阻抗 工作頻段 駐波比 插入損耗 機械壽命 耐壓 備注
（Ω） （GHz） （dB） (次) (KV)
N/SMA-JJ 50 0-11 ≤1.1 ≤0.1 ＞500 1
N/SMA-KJ 50 0-11 ≤1.1 ≤0.1 ＞500 1
N/SMA-JK 50 0-11 ≤1.1 ≤0.1 ＞500 1
N/SMA-KK 50 0-11 ≤1.1 ≤0.1 ＞500 1
N/N-KK 50 0-11 ≤1.1 ≤0.1 ＞500 1.5
N/N-KJ 50 0-11 ≤1.1 ≤0.1 ＞500 1.5
N/N-KJW 50 0-11 ≤1.1 ≤0.1 ＞500 1.5 拐角轉(zhuǎn)接頭
N/DIN-KJ 50 0-11 ≤1.1 ≤0.1 ＞500 1.5
N/DIN-JJ 50 0-11 ≤1.1 ≤0.1 ＞500 1.5
N/TNC-JJ 50 0-11 ≤1.1 ≤0.1 ＞500 1.5
N/TNC-JK 50 0-11 ≤1.1 ≤0.1 ＞500 1.5
N/TNC-KJ 50 0-11 ≤1.1 ≤0.1 ＞500 1.5
N/TNC-KK 50 0-11 ≤1.1 ≤0.1 ＞500 1.5
N/BNC-JJ 50 0-4 ≤1.1 ≤0.1 ＞500 1.5
N/BNC-KJ 50 0-4 ≤1.1 ≤0.1 ＞500 1.5
N/BNC-JK 50 0-4 ≤1.1 ≤0.1 ＞500 1.5
N/BNC-KK 50 0-4 ≤1.1 ≤0.1 ＞500 1.5
